MS Pipes

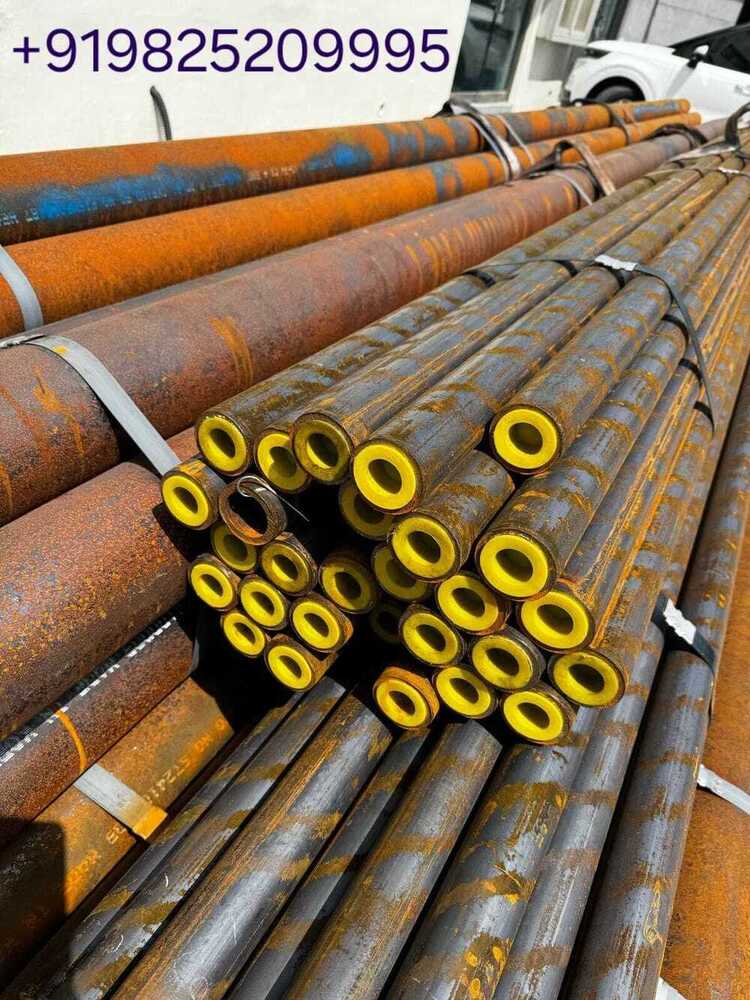

MS PIPE 2 INCH

Product Description: MS Pipe “ 2 Inch Diameter Product Name: Mild Steel Pipe Nominal Diameter: 2 inches (50.8 mm) Material Grade: IS 1239 / IS 3589 / ASTM A36 / API 5L Gr. B (as required) Pipe Type: Seamless / Welded (ERW “ Electric Resistance Welded) Wall Thickness: SCH 20 / SCH 40 / SCH 80 or customized Length: 6 meters standard (custom lengths available) Surface Finish: Black (bare), Painted, or Hot-Dip Galvanized End Type: Plain End (PE), Beveled End (BE), or Threaded End (TE)

MS PIPE 30 INCH

Product Name: Mild Steel Pipe Nominal Diameter: 30 inches (762 mm) Material Grade: IS 1239 / IS 3589 / ASTM A36 / API 5L Gr. B (as applicable) Type: Seamless / Welded (ERW/SAW/LSAW) Length: 6 to 12 meters (or customized as per requirement) Wall Thickness (SCH): SCH 10 / 20 / 40 / 80 / Custom thickness available Surface Finish: Black (bare), Painted, or Galvanized Ends: Plain End (PE), Beveled End (BE), or Threaded End (TE)

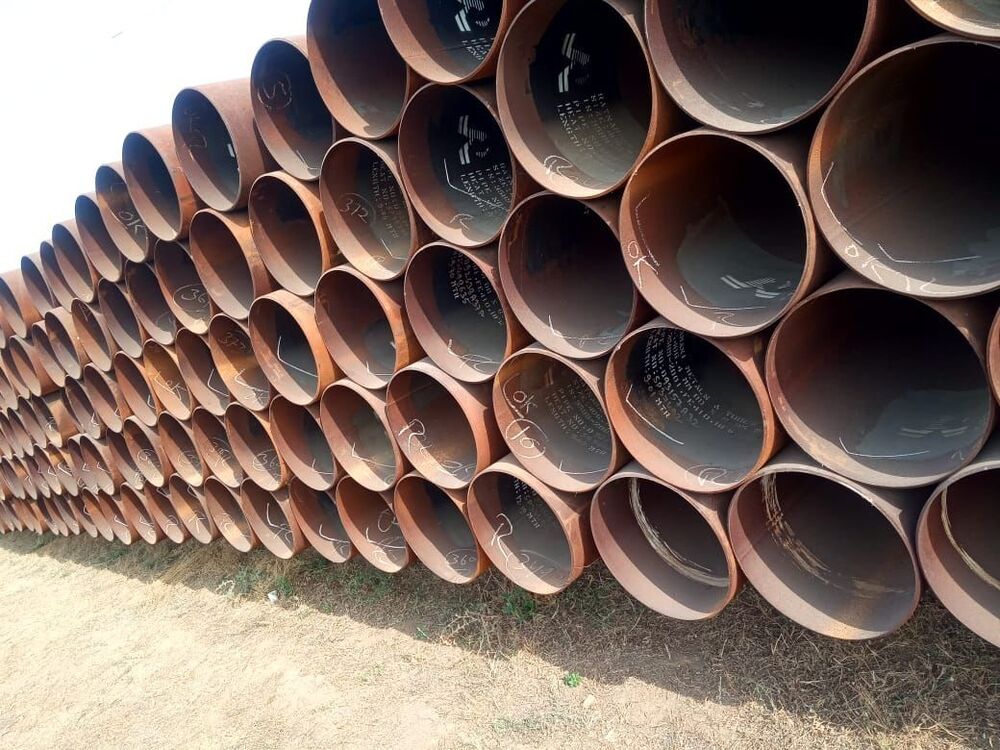

MS PIPE 26 INCH

Product Description: The 26-inch MS Pipe with an outer diameter of 660.4 mm is a large-diameter mild steel pipe designed for use in heavy-duty applications such as water transmission, structural piling, oil & gas pipelines, and infrastructure projects. Made from low carbon mild steel, it provides excellent mechanical strength, weldability, and long service life, especially when properly coated.

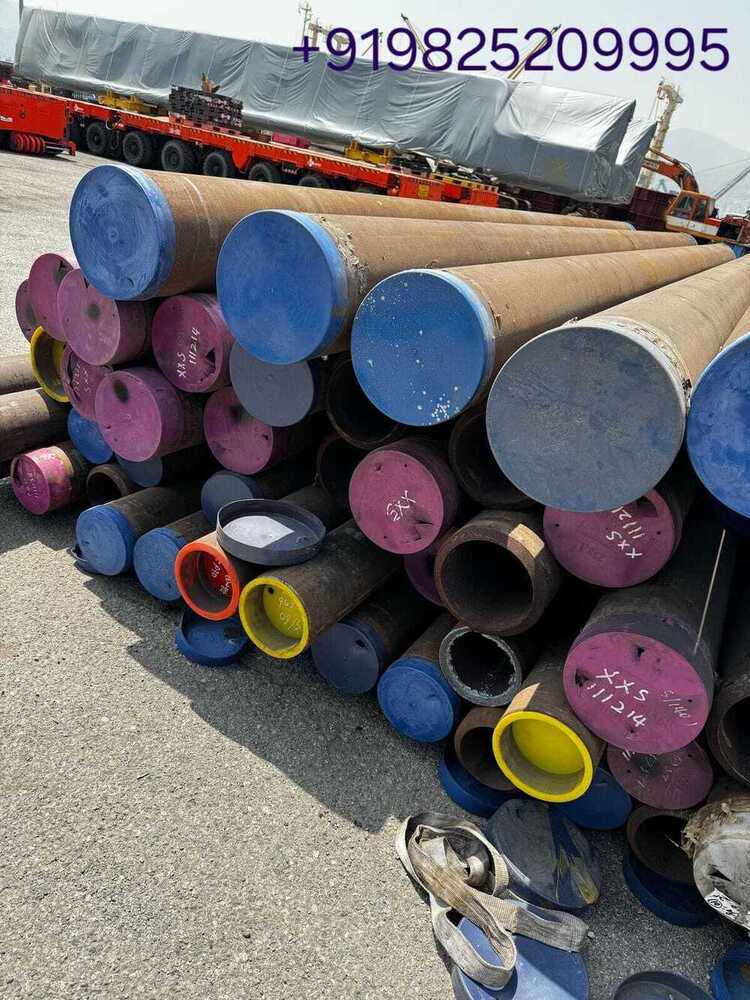

MS PIPE 20 INCH

Product Name: MS Pipe “ 20 Inch (508 mm OD) Product Description: The 20-inch MS Pipe with an outer diameter of 508 mm is a heavy-duty, high-strength pipe manufactured from mild steel (low carbon steel). Designed for use in structural, industrial, and fluid transport systems, it offers excellent durability, weldability, and cost-effectiveness for both above-ground and underground applications. Technical Specifications: Outer Diameter (OD): 508 mm (20 inches) Material: Mild Steel (Low Carbon Steel) Wall Thickness: As per requirement (e.g., SCH 20 / 40 / 60 / 80 or custom) Length: 6 meters, 12 meters, or custom-cut Manufacturing Type: ERW (Electric Resistance Welded), SAW / LSAW, or Seamless Ends: Plain Ends, Beveled Ends, or Threaded (on request) Surface Finish: Black (bare), Hot-Dip Galvanized, or Painted (Red Oxide / Bitumen) Available Standards / Grades: IS 3589 (Fe 330 / Fe 410) “ for water, gas, and structural use ASTM A53 / A106 (Grade A/B) “ for pressure and high-temperature use API 5L (Grade A/B, X42 to X70) “ for oil and gas pipelines EN 10219 (S235 / S275 / S355) “ for structural applications Key Features: Strong and reliable for heavy-duty applications Excellent weldability and fabrication properties Suitable for protective coatings and galvanization Long service life and corrosion resistance (when coated) Smooth bore for efficient flow of fluids or gases Applications: Water supply and sewage pipelines Oil and gas transmission (onshore and offshore) Piling and foundation works Structural columns and supports Industrial processing systems Fabrication of large frameworks and machinery

MS PIPE 24 INCH

Product Name: MS Pipe “ 20 Inch (508 mm OD) Product Description: The 20-inch MS Pipe with an outer diameter of 508 mm is a heavy-duty, high-strength pipe manufactured from mild steel (low carbon steel). Designed for use in structural, industrial, and fluid transport systems, it offers excellent durability, weldability, and cost-effectiveness for both above-ground and underground applications. Technical Specifications: Outer Diameter (OD): 508 mm (20 inches) Material: Mild Steel (Low Carbon Steel) Wall Thickness: As per requirement (e.g., SCH 20 / 40 / 60 / 80 or custom) Length: 6 meters, 12 meters, or custom-cut Manufacturing Type: ERW (Electric Resistance Welded), SAW / LSAW, or Seamless Ends: Plain Ends, Beveled Ends, or Threaded (on request) Surface Finish: Black (bare), Hot-Dip Galvanized, or Painted (Red Oxide / Bitumen) Available Standards / Grades: IS 3589 (Fe 330 / Fe 410) “ for water, gas, and structural use ASTM A53 / A106 (Grade A/B) “ for pressure and high-temperature use API 5L (Grade A/B, X42 to X70) “ for oil and gas pipelines EN 10219 (S235 / S275 / S355) “ for structural applications Key Features: Strong and reliable for heavy-duty applications Excellent weldability and fabrication properties Suitable for protective coatings and galvanization Long service life and corrosion resistance (when coated) Smooth bore for efficient flow of fluids or gases Applications: Water supply and sewage pipelines Oil and gas transmission (onshore and offshore) Piling and foundation works Structural columns and supports Industrial processing systems Fabrication of large frameworks and machinery

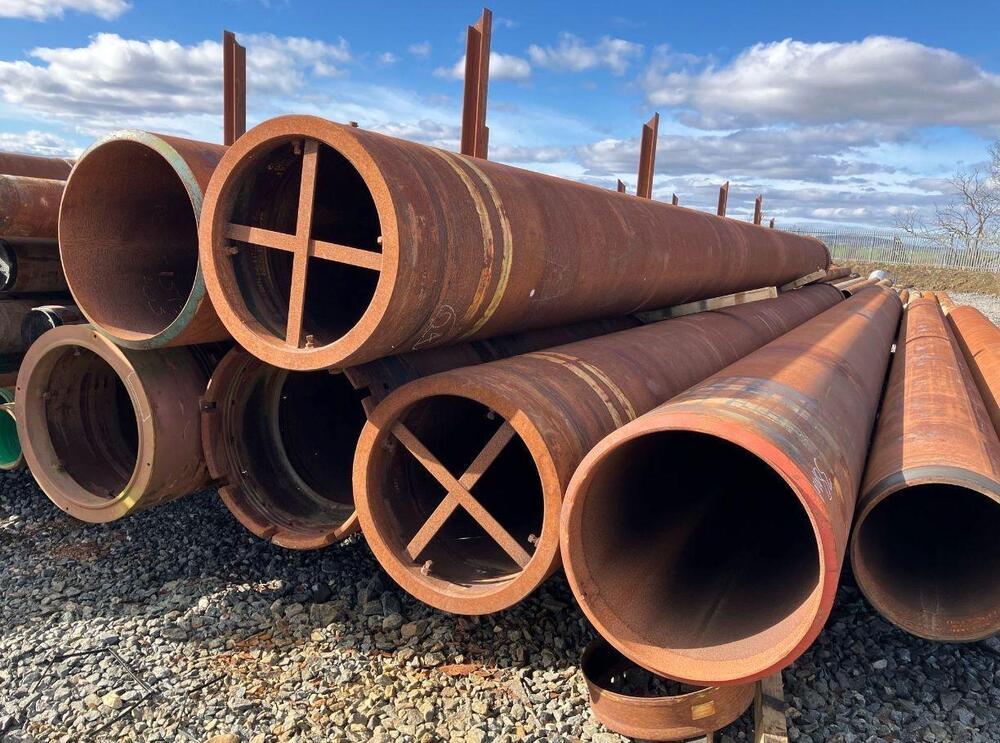

MS PIPE 28 INCH

MS Pipe “ 28 Inch (711.2 mm Outer Diameter) Product Description: The 28-inch MS Pipe with an outer diameter of 711.2 mm is a large-diameter mild steel pipe suitable for a wide range of heavy-duty applications. It is commonly used in water supply lines, oil & gas transmission, structural piling, and industrial infrastructure projects. Manufactured using high-quality mild steel, it offers excellent weldability, mechanical strength, and a long service life, especially when coated or galvanized.

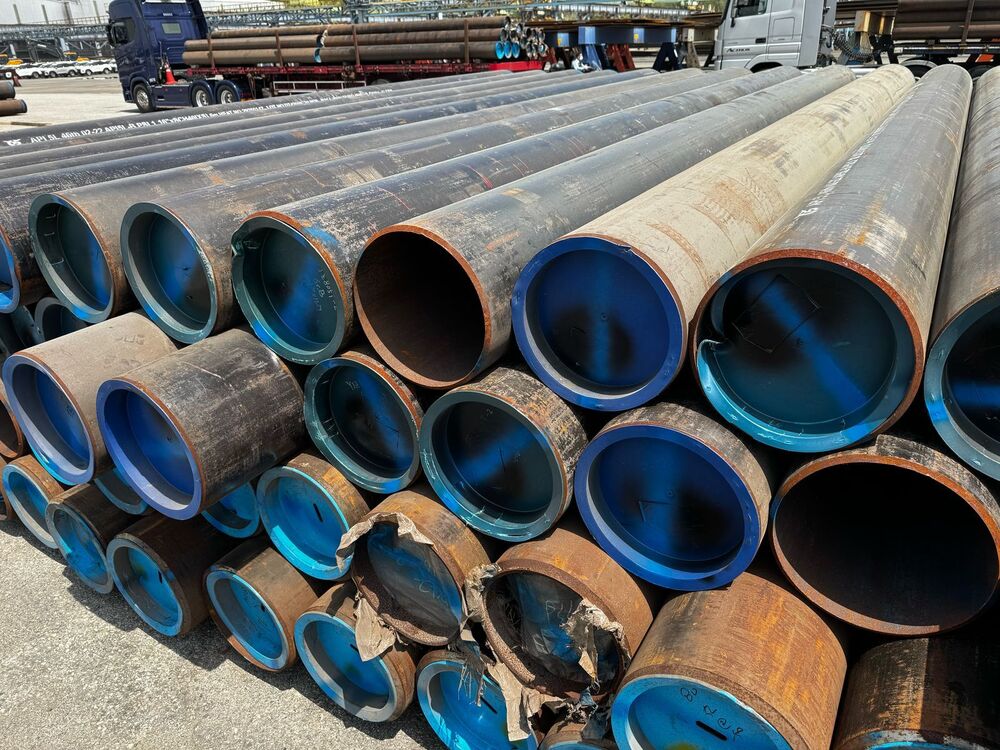

MS PIPE 16 INCH

Product Name: MS Pipe “ 16 Inch (406.4 mm OD) Product Description: The 16-inch MS (Mild Steel) Pipe with a 406.4 mm outer diameter is a high-quality steel pipe suitable for a wide range of structural, industrial, and fluid transport applications. Made from low-carbon steel, it offers excellent strength, weldability, and cost-effectiveness. 🔠Technical Specifications: Outer Diameter (OD): 406.4 mm (16 inches) Material: Mild Steel (low carbon content) Wall Thickness: As per standard or custom (e.g., Schedule 20, 40, 60, 80) Length: Standard (6 or 12 meters) or custom Manufacturing Process: ERW (Electric Resistance Welded), Seamless, or SAW/LSAW Standards Available: IS 1239 / IS 3589 ASTM A53 / A106 Grade A/B API 5L (for oil & gas) EN 10219 (for structural) š™ï Key Features: High strength and dimensional accuracy Excellent weldability and machinability Available in black, galvanized, or coated finishes Suitable for hot-dip galvanizing or painting Corrosion-resistant with proper coating

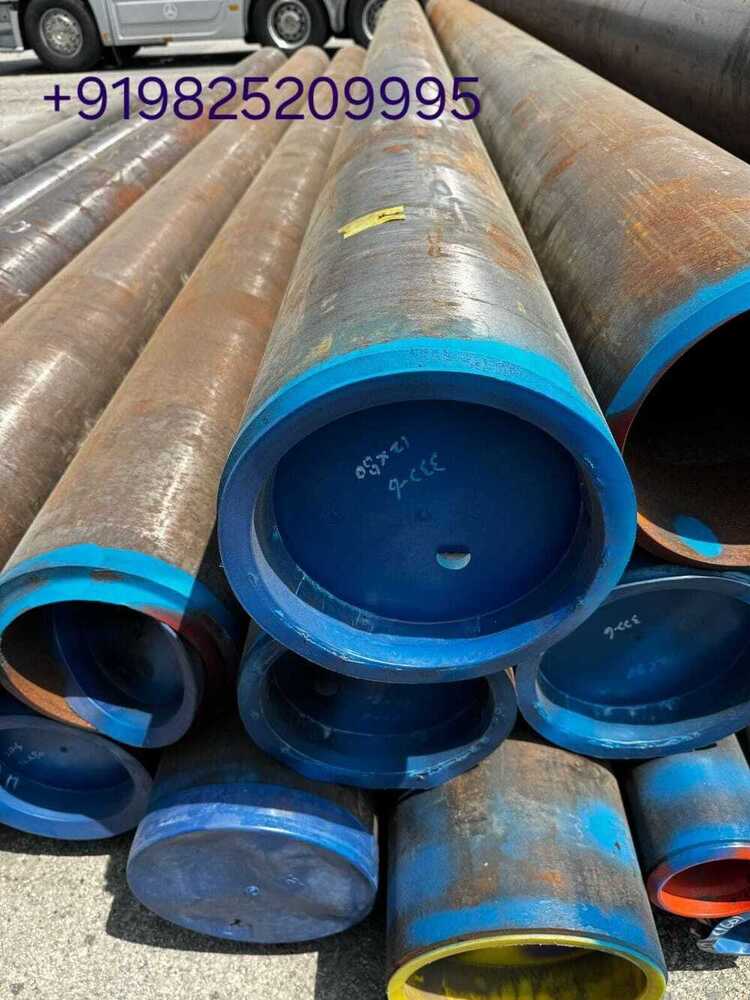

MS PIPE 18 INCH

MS PIPE 18 INCH SIZE 457 OD

Big Dia Ms Pipes

Mild Steel ERW Pipes

MS ERW Pipe

MS Black ERW Pipes

Mild steel pipes and tubes are versatile, durable, and cost-effective solutions widely used in various industrial, construction, and mechanical applications. Made from low carbon steel, these pipes and tubes offer excellent strength, weldability, and machinability, making them ideal for transporting fluids, structural support, and manufacturing components.

Jindal MS Pipes

MS Pipe (Mild Steel Pipe) Product Description Mild Steel Pipes (MS Pipes) are pipes made from low carbon steel, known for their strength, durability, and versatility. These pipes are widely used in construction, infrastructure, plumbing, and general engineering applications due to their excellent mechanical properties and cost-effectiveness.

MS Pipes

Mild Steel (MS) Pipes are versatile steel pipes made from low carbon steel, offering excellent strength, durability, and weldability. These pipes are widely used in various industrial, construction, and infrastructure applications due to their cost-effectiveness and good mechanical properties.
